Eco 3/4" built-in flush valve with horizontal medical lever Back to list

Print sheet

Technical Specifications

Name Eco 3/4" built-in flush valve with horizontal medical lever
Series Eco
Code 5194941
Weight 1.60
Material Brass
Colors
  • 11-Chrome
Specifics:

Opening time: 4 sec.
Flow rate [3bar] : 94l/min - 99l/min
Operating pressure: 2-6 bar
Recommended pressure: 3 bar



With anti-water hammer system

Downloads

CAD 2D
(41.64 KB)
CAD 3D
(564.34 KB)
Technical Drawing
(105.75 KB)
Cleanning Manual
(3.69 MB)
All Files
(699.27 KB)

Gallery

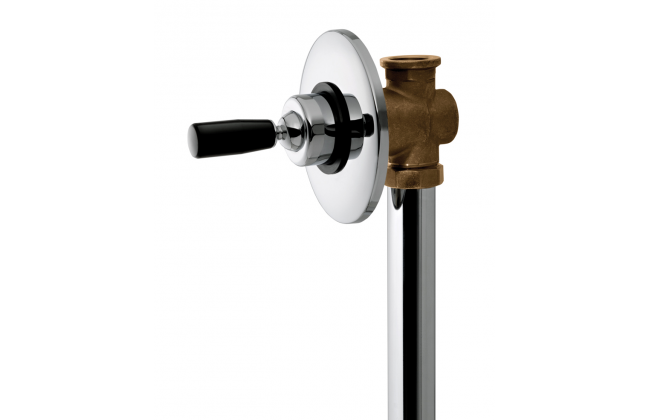

Eco 3/4" built-in flush valve with horizontal medical lever
